Mencoba Caddy Server

Halo, kalau kamu merasa tulisan saya ngebantu kamu, kamu bisa ucapkan terima kasih lewat saweria.

Hello, if you find this article helpful, you can express your gratitude through saweria.

Memulai Caddy Web Server

Install Caddy

Saya bakal coba native (non docker) installation biar lebih mudah dimengerti

Install caddy

sudo apt install -y debian-keyring debian-archive-keyring apt-transport-https curl
curl -1sLf 'https://dl.cloudsmith.io/public/caddy/stable/gpg.key' | sudo gpg --dearmor -o /usr/share/keyrings/caddy-stable-archive-keyring.gpg
curl -1sLf 'https://dl.cloudsmith.io/public/caddy/stable/debian.deb.txt' | sudo tee /etc/apt/sources.list.d/caddy-stable.list
sudo apt update
sudo apt install caddy

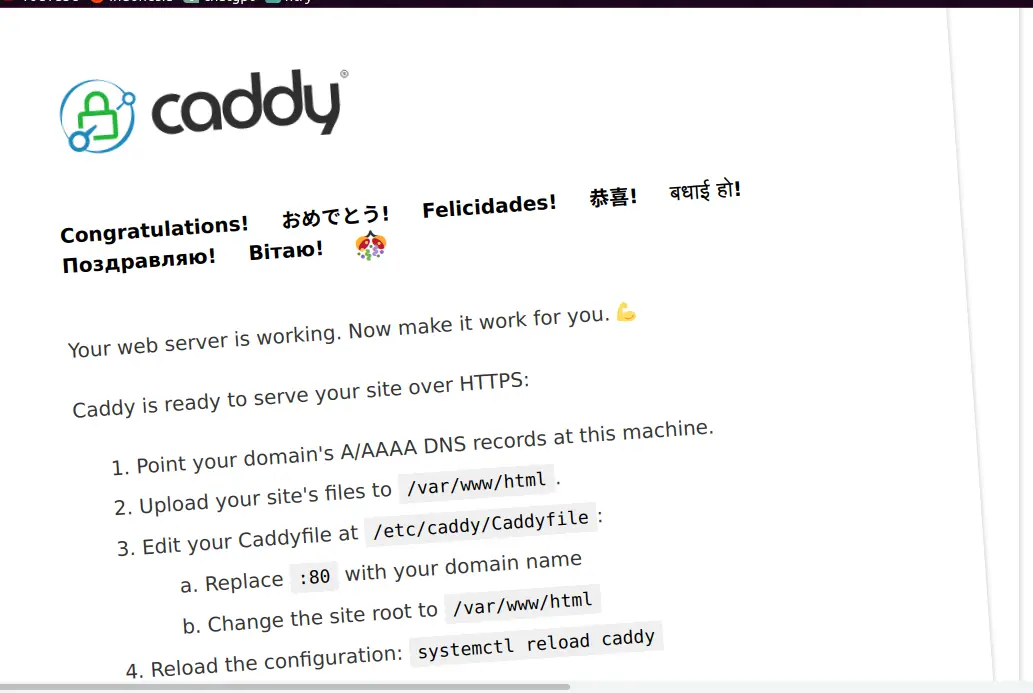

Buka di browser, ketik IP public

Sampai sini, instalasi Caddy sudah berhasil

Reverse Proxy

Agar lebih mudah, silakan pull dulu image trafex/php-nginx docker pull trafex/php-nginx
trafex/php-nginx defaultnya jalan di port :8080, jalankan image ini dengan

docker run -p 8080:8080 trafex/php-nginx

Ubah file /etc/caddy/Caddyfile

# The Caddyfile is an easy way to configure your Caddy web server.
#
# Unless the file starts with a global options block, the first
# uncommented line is always the address of your site.
#
# To use your own domain name (with automatic HTTPS), first make
# sure your domain's A/AAAA DNS records are properly pointed to
# this machine's public IP, then replace ":80" below with your
# domain name.

:80 {
        # Set this path to your site's directory.
        #root * /usr/share/caddy

        # Enable the static file server.
        #file_server

        # Another common task is to set up a reverse proxy:
        # enable this
        # trafex/php run at port :8080
        reverse_proxy localhost:8080

        # Or serve a PHP site through php-fpm:
        # php_fastcgi localhost:9000
}

# Refer to the Caddy docs for more information:
# https://caddyserver.com/docs/caddyfile

Multiple Caddyfile (Nginx Style)

Buat direktori baru, sudo mkdir -p /etc/caddy/{sites-available,sites-enabled}
Ubah file /etc/caddy/Caddyfile

import sites-enabled/*

Buat file baru di /etc/caddy/sites-available/Caddyfile


:80 {
        # trafex/php run at port :8080
        reverse_proxy localhost:8080
}

Buat symlink

sudo ln -s /etc/caddy/sites-available/Caddyfile /etc/caddy/sites-enabled/

Reload service Caddy sudo systemctl reload caddy.service

Menambahkan Domain

Ubah file /etc/caddy/sites-available/Caddyfile

#just add this
caddy.mydomain.com {
        reverse_proxy localhost:8080
}

Reload service Caddy sudo systemctl reload caddy.service
Setup di atas akan
a. Redirect dari http ke https
b. Membuat https certificate menggunakan Let’s Encrypt (ga perlu Certbot)

Manipulasi Header

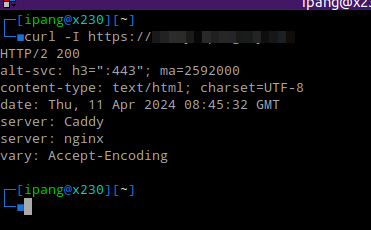

Caddy & Trafex Default Header (Redundant Server: Header)

Ubah file /etc/caddy/sites-available/Caddyfile

#just add this
caddy.mydomain.com {
        reverse_proxy localhost:8080
        header {
                Strict-Transport-Security max-age=31536000
                Permissions-Policy interest-cohort=()
                X-Content-Type-Options nosniff
                X-Frame-Options SAMEORIGIN
                Referrer-Policy no-referrer
                X-XSS-Protection "1; mode=block"
                X-Permitted-Cross-Domain-Policies none
                #instruct search engine to to index this site
                X-Robots-Tag "noindex, nofollow"
                #remove powered by
                -X-Powered-By
                #remove server info
                -Server
        }

}

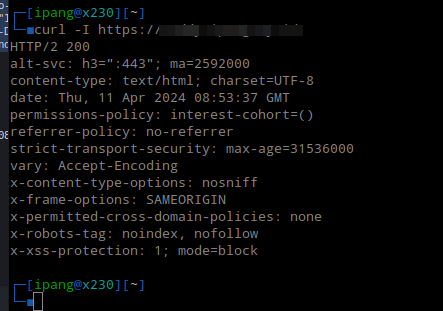

Test menggunakan curl -I https://caddy.mydomain.com

Menambahkan Log

Ubah file /etc/caddy/sites-available/Caddyfile

caddy.mydomain.com {
        log {
                output file /var/log/caddy/caddy.mydomain.com.log
                format console
        }
        reverse_proxy localhost:8080
        header {
                Strict-Transport-Security max-age=31536000
                Permissions-Policy interest-cohort=()
                X-Content-Type-Options nosniff
                X-Frame-Options SAMEORIGIN
                Referrer-Policy no-referrer
                X-XSS-Protection "1; mode=block"
                X-Permitted-Cross-Domain-Policies none
                #instruct search engine to to index this site
                X-Robots-Tag "noindex, nofollow"
                #remove powered by
                -X-Powered-By
                #remove server info
                -Server
        }

}

Block Access Hidden Files

Ubah file /etc/caddy/sites-available/Caddyfile

caddy.mydomain.com {
        log {
                output file /var/log/caddy/caddy.mydomain.com.log
                format console
        }
        reverse_proxy localhost:8080
        header {
                Strict-Transport-Security max-age=31536000
                Permissions-Policy interest-cohort=()
                X-Content-Type-Options nosniff
                X-Frame-Options SAMEORIGIN
                Referrer-Policy no-referrer
                X-XSS-Protection "1; mode=block"
                X-Permitted-Cross-Domain-Policies none
                #instruct search engine to to index this site
                X-Robots-Tag "noindex, nofollow"
                #remove powered by
                -X-Powered-By
                #remove server info
                -Server
        }
        @forbidden {
                not path /.well-known/*
                path /.*
                #it will return 403/forbidden
        }
        # to rediredt forbidden path to root
        # use this
        #redir @forbidden /


}

Test Caddyfile

Untuk menge-test caddyfile gunakan sudo caddy validate --config /etc/caddy/sites-available/Caddyfile
Untuk memperbaiki format (indentation) caddyfile, gunakan sudo caddy fmt --overwrite /etc/caddy/sites-available/Caddyfile

Caddy dengan Docker

Pastikan Caddy “native” tidak terinstall sudo apt remove caddy
Buat satu direktori baru mkdir ~/caddy & file config Caddyfile touch ~/caddy/Caddyfile
Buat network bridge baru dengan docker network create -d bridge caddy_net
Masuk ke direktori caddy cd ~/caddy, buat docker-compose.yml untuk Caddy

name: caddy

services:
  caddy:
    image: caddy:latest
    restart: unless-stopped
    ports:
      - "80:80"
      - "443:443"
      - "443:443/udp"
    volumes:
      - ./Caddyfile:/etc/caddy/Caddyfile
      - ./site:/srv
      - caddy_data:/data
      - caddy_config:/config
    networks:
      - caddy_net

volumes:
  caddy_data:
  caddy_config:

networks:
  caddy_net:
    external: true

Buat file baru whoami.yml

name: whoami

services:
  whoami:
    image: traefik/whoami
    command:
      - --port=2001

    restart: unless-stopped

    networks:
      - caddy_net

networks:
  caddy_net:
    external: true

Jalankan docker compose up -d untuk running Caddy & docker compose -f whoami.yml untuk running whoami container
Buka file Caddyfile, isi dengan

:80 {
        reverse_proxy whoami:2001
}

Untuk reload Caddyfile gunakan docker compose exec -w /etc/caddy caddy caddy reload
